Description
How a Pyramid Diffuser Works
A flat wall sends sound back the way a mirror sends back light: one strong reflection, straight at the listener. In a band room or studio those reflections pile up into flutter echo, harsh highs and hot spots where some instruments jump out and others disappear.
A pyramid diffuser breaks that reflection up. Its four angled faces each send part of the sound off in a different direction, so instead of one loud echo the room gets many quieter ones spread out in time and space. The sound energy stays in the room – nothing is soaked up – which is why diffusion keeps a space sounding live and natural where too many absorbing panels would leave it dead.
Pyramidal Diffuser and Quadra Pyramid Diffuser: The Same Four-Sided Shape

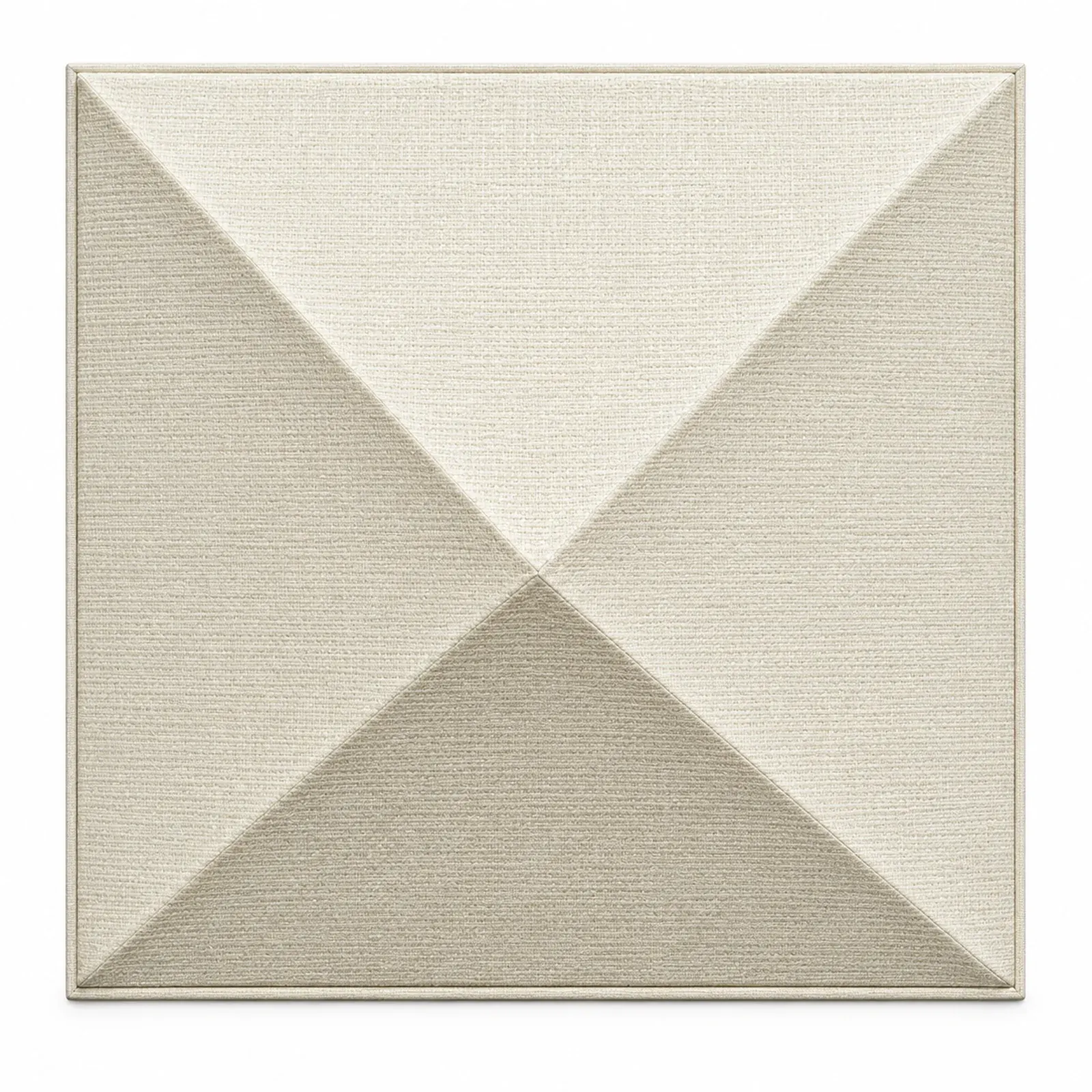

You will see this panel sold under several names: pyramid diffuser, pyramidal diffuser, quadra pyramid diffuser and pyramid sound diffuser. They all describe the same thing – a square panel that rises to a point in the middle, with four equal triangular faces.
Those four faces are what matter. Each one tilts toward a different side of the room, so a single panel spreads sound up, down, left and right at once. That makes a pyramidal diffuser easy to place: it works the same whichever way round it is hung, and a row of them on a rear wall scatters sound evenly across the whole room rather than in one direction.
Where to Use Pyramid Sound Diffusers
Anywhere a room has to sound good for music, not just quiet:

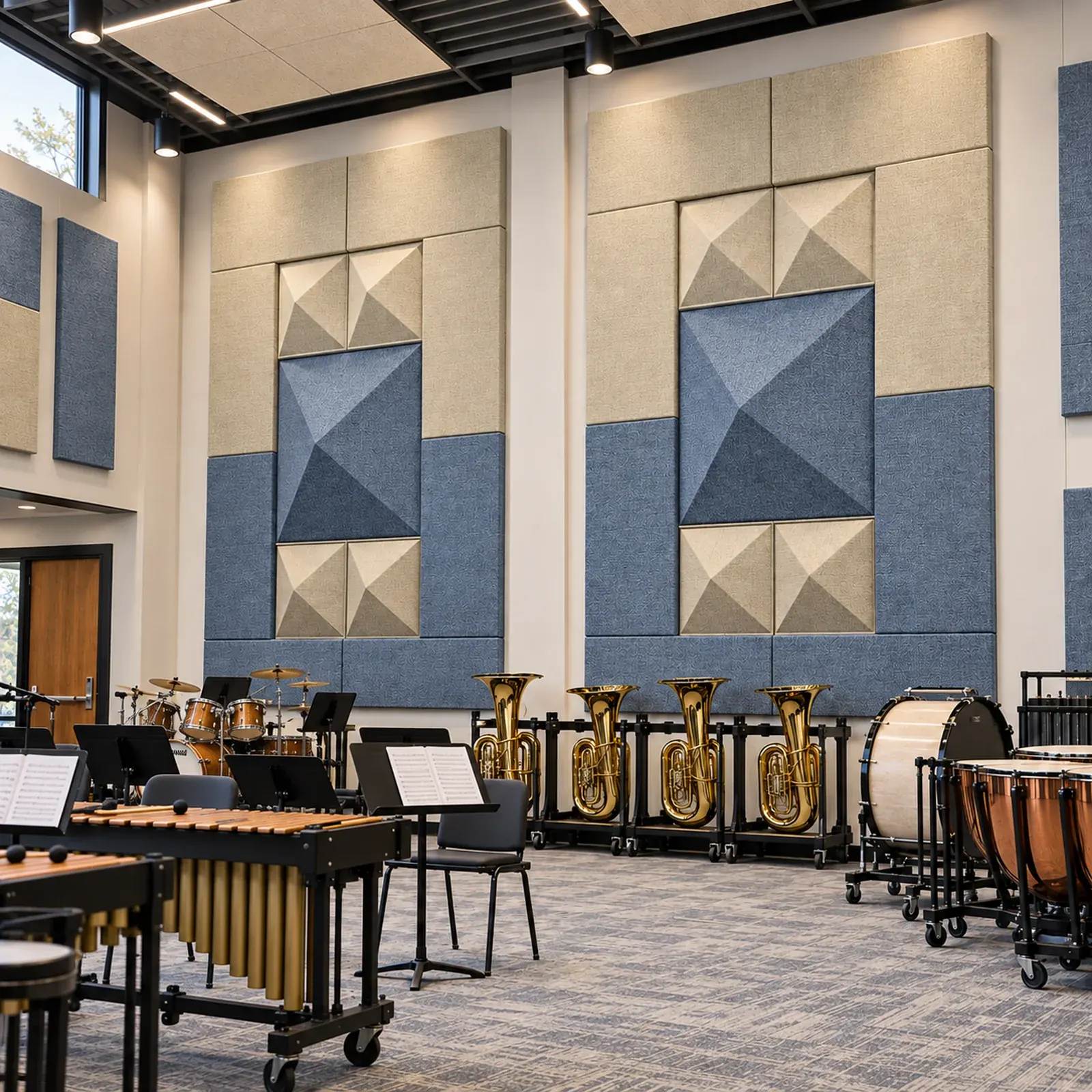

- Band and choral rooms – players hear each other across the room instead of a wash of reflections off the back wall.
- Recording studios and control rooms – on the rear wall behind the listening position, where one flat reflection would smear the mix.
- Churches and worship spaces – keep the music lively while breaking up slap-back off hard rear walls.

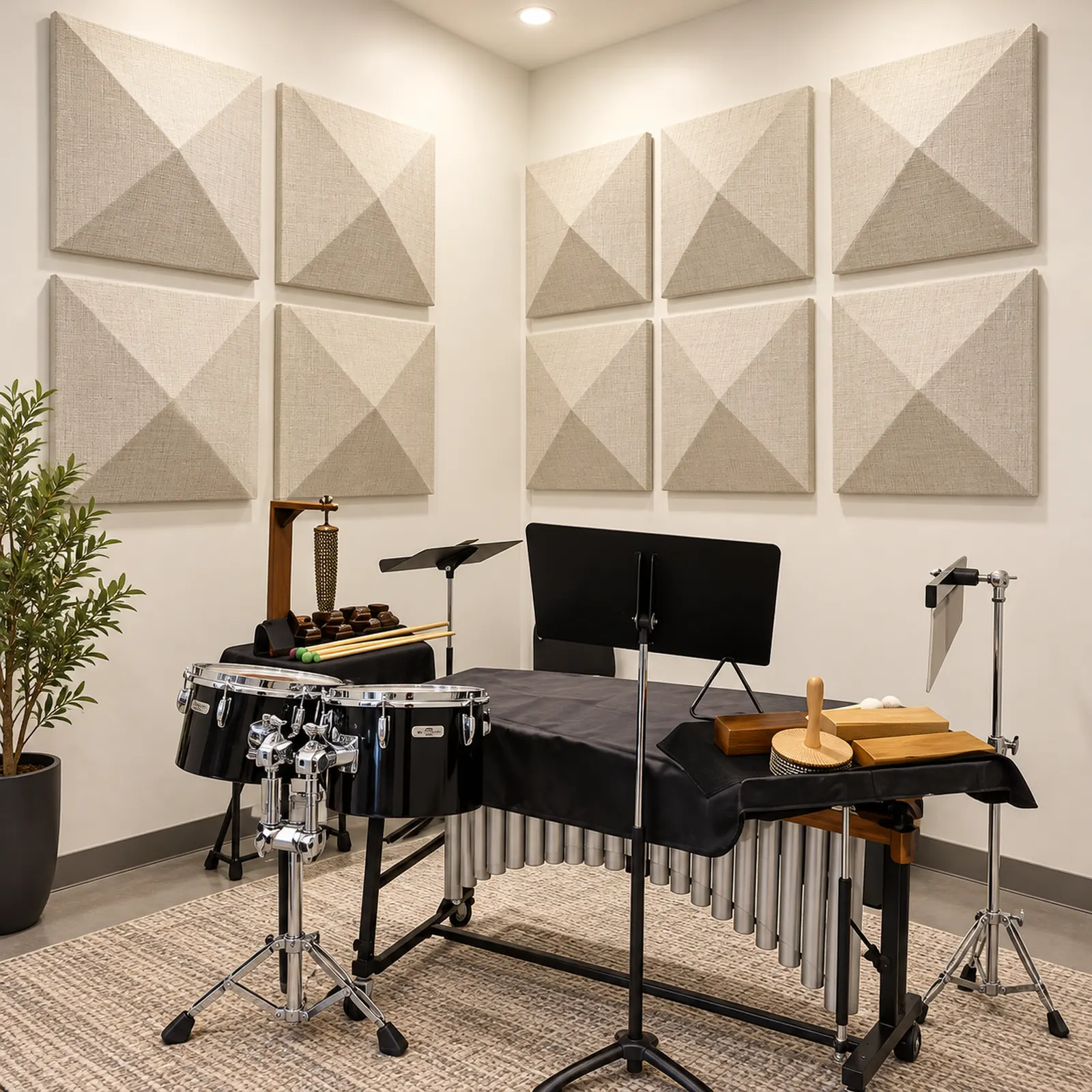

- Music practice rooms – small rooms with parallel walls, where flutter echo is the most obvious problem.
- Auditoriums and performance halls – upper side walls and rear walls, above head height.
Mount them above head height and a few feet from where people sit or play, so the scattered sound has room to spread before it reaches anyone.
Pyramid Diffusers vs Acoustic Panels: Using Both
Diffusers and absorbers do different jobs, and most rooms built for music need both. Sound absorbing wall panels take energy out of the room – they are the fix wherever echo lasts too long. A pyramid diffuser spreads out the sound that is left so it stays even and natural.
- Absorb the first reflection points – the side walls nearest the performers or the listening position.
- Diffuse the rear wall and upper walls – where a strong reflection would come back late and muddy everything.
- Do not cover every wall in absorption – a room treated wall to wall sounds flat and lifeless; diffusion keeps the life in it.

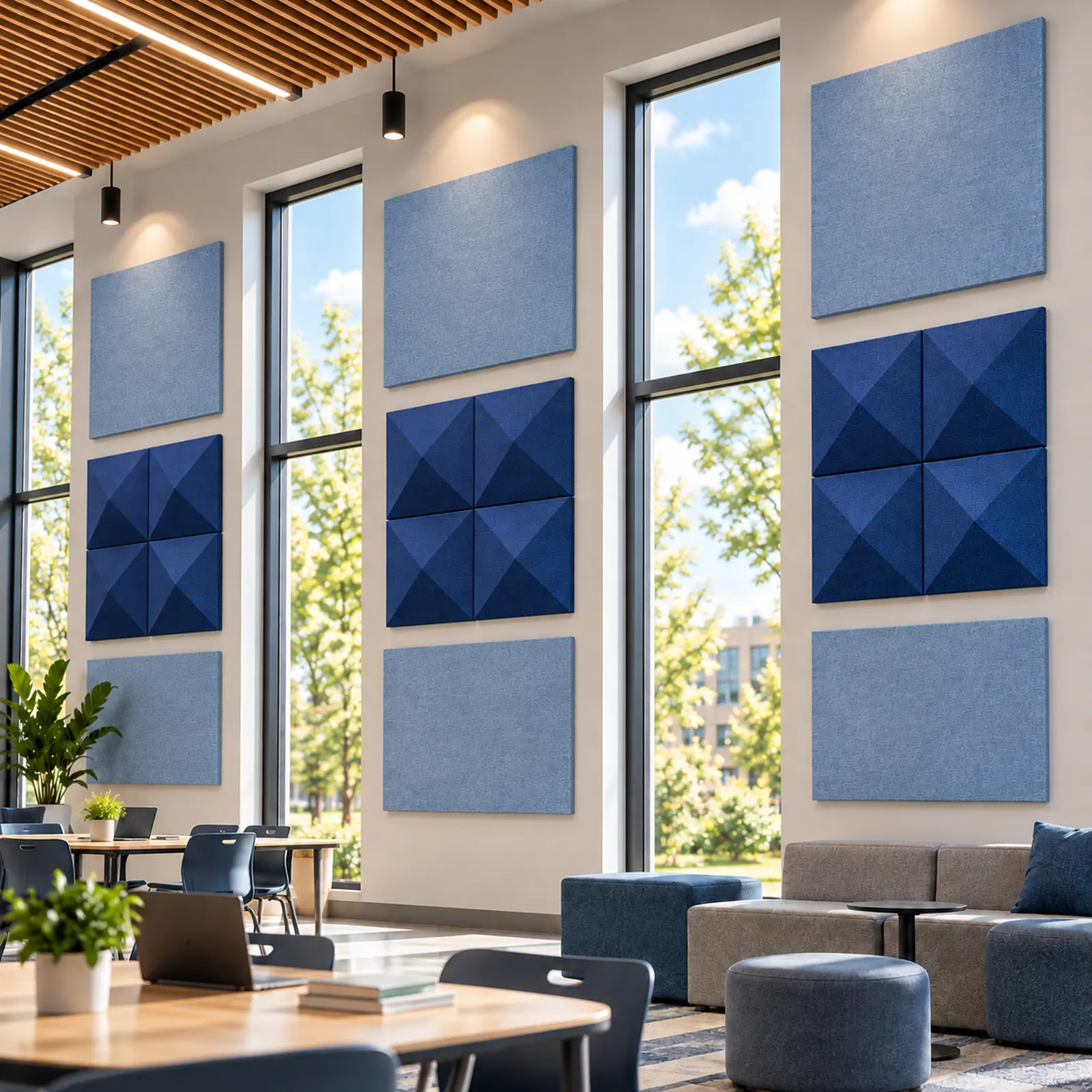

Mixing the two also makes a better-looking wall. Pyramid diffusers set between flat fabric panels, in a matching or contrasting color, break up a long run of squares and give the room a finished, designed look.
Diffusers this size mostly work on the mid and high frequencies. Boomy bass is a separate problem, and the fiberglass-backed version adds some absorption behind the shell to help with it.
Pyramid Diffuser Sizes, Finishes and FR701 Fabric Colors

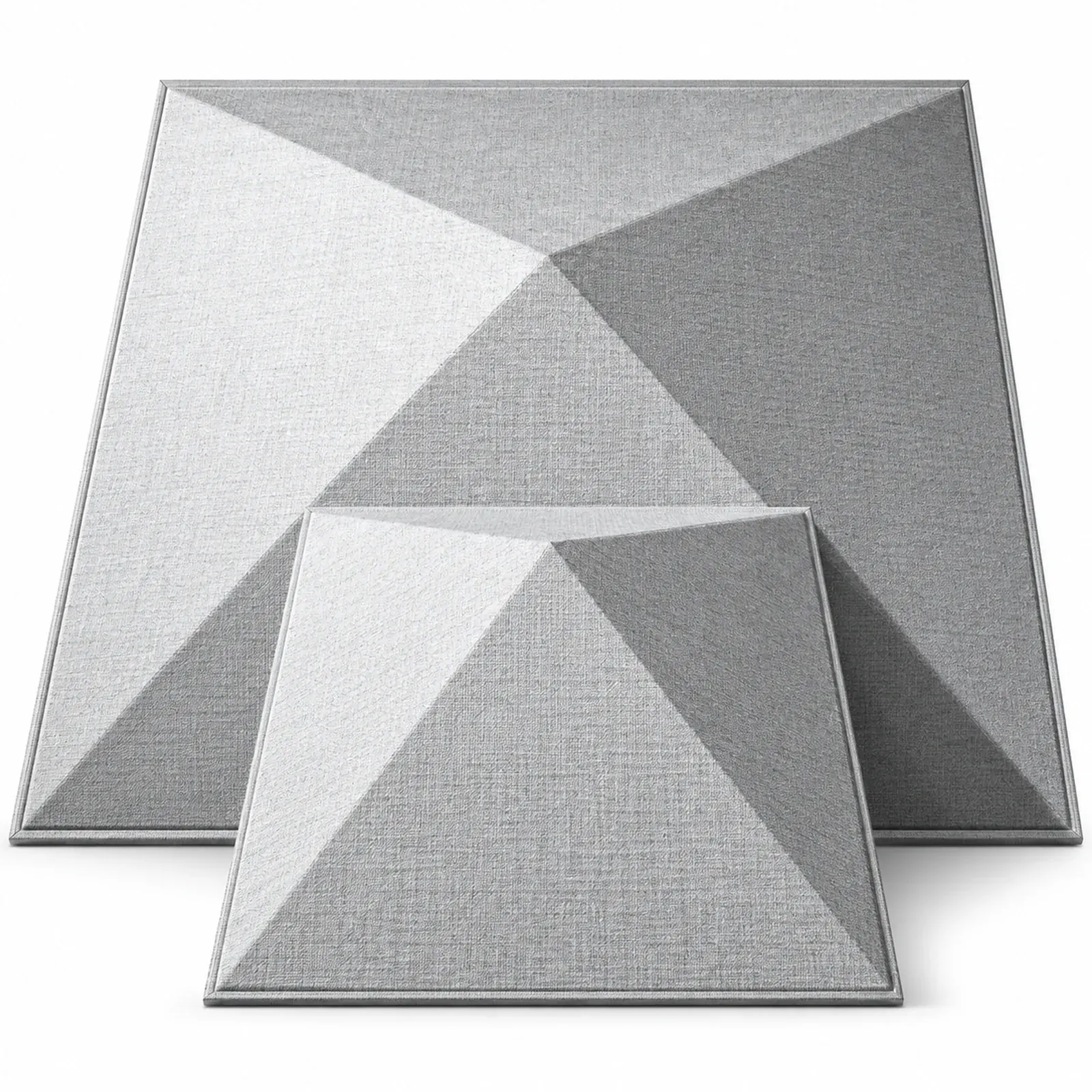

- Four sizes – 2′ x 2′, 2′ x 4′, 4′ x 4′ and 4′ x 6′. Sizes are nominal: each panel is 1″ shorter in each direction, so a 2′ x 2′ measures 23″ x 23″.
- Standard finish – a clean white plastic face that suits most rooms.
- Fabric finish – wrapped in Guilford of Maine FR701 fabric in 44 colors, the same fabric as our wall panels, so diffusers and panels can match exactly or contrast on purpose. See the FR701 fabric colors.
- Fiberglass backing – optional on either finish, for added absorption behind the panel.

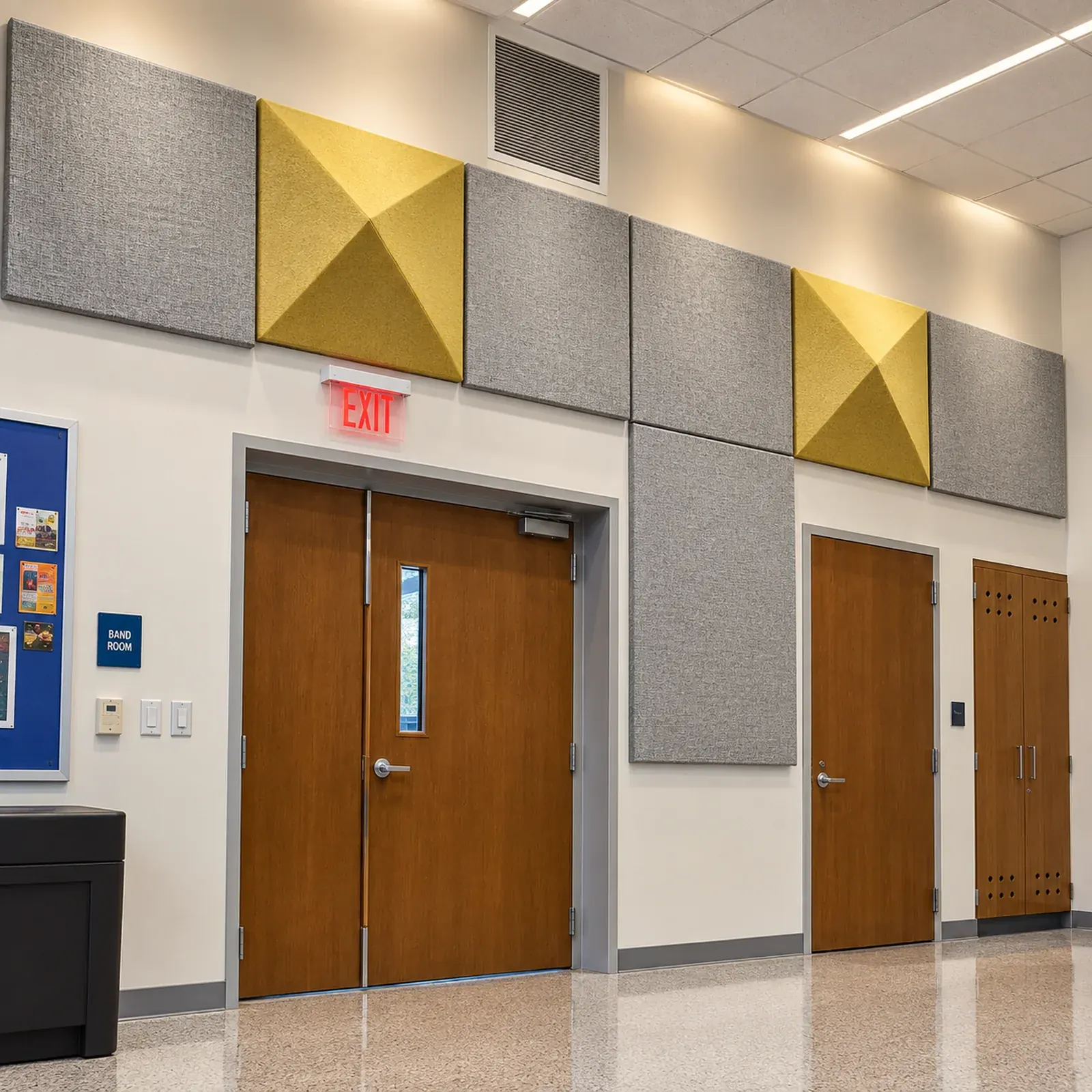

Popular pairings are Cardinal pyramids against Silver Papier panels for a bold school-color wall, Wedgewood with Wheat for a softer look, and Eggshell or White to blend into a light room.
Want a curved profile that spreads sound across a wide arc instead? See the Barrel Diffuser.
Frequently Asked Questions
- What does a pyramid diffuser do?
- It scatters sound off four angled faces in every direction, so a hard wall stops sending one strong reflection back into the room. Flutter echo and harsh hot spots go away without making the room sound dead.
- What is a pyramidal diffuser?
- A pyramidal diffuser is the same as a pyramid diffuser: a square panel with four triangular faces rising to a center point. The name just describes the shape.
- What is a quadra pyramid diffuser?
- Another name for a four-sided pyramid diffuser. “Quadra” refers to the four faces, which scatter sound in four directions at once.
- Is a diffuser the same as an acoustic panel?
- No. An acoustic panel absorbs sound and takes it out of the room. A diffuser keeps the sound in the room and spreads it out. Music rooms usually need both: panels at the first reflection points, diffusers on the rear and upper walls.
- Pyramid or barrel diffuser: which should I use?
- A pyramid scatters sound in every direction, so it can be mounted any way round. A barrel spreads sound across a wide arc in one direction and is set vertically or horizontally depending on where you want it to go. Many rooms use both.
